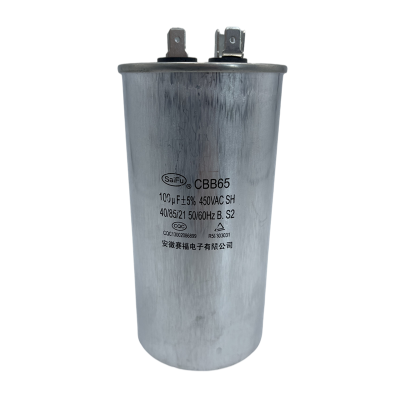

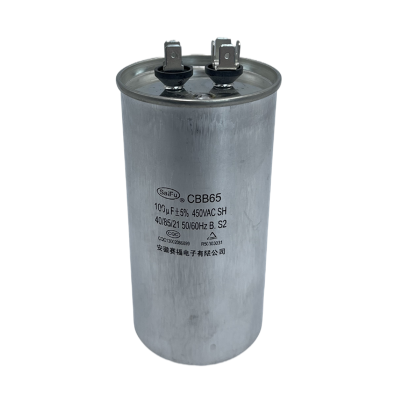

大容量450VAC 100UF交流马达电机CBB65电容批发

引用标准 Reference standards

GB/T 3667.1( IEC60252-1)

气候类别 Climatic category

40/70/21、40 / 85 / 21

运行等级 Class of operation

Class B (1 OOOOh) Class C (3000h)

安全防护等级 Class of safety protection

S2

电压范围Voltage range

250VAC、370VAC、440VAC、450VAC

容量范围 Capacitance range

2-100 pF

电容量偏差 Capacitance tolerance

± 5%、± 10%、± 15%

损耗角正切 Dissipation factor

20 x1 (TCI OOH 乙 20°C)

端子间测试电压Test voltage terminal to terminal UTT

2 Un for 2 seconds

端子与外壳间测试电压Test voltage terminal to case UTC

(2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds

绝缘电阻 Insulation Resistance

N 3000s (100Hz, 20°C, 1min)
